Key Capabilities

These are the powerful features that make DAO production-ready. Don't worry if some seem complex — you can start simple and add these capabilities as you need them.

1. Dual Deployment Targets

What is this? DAO agents can be deployed to either Databricks Model Serving or Databricks Apps using the same configuration, giving you flexibility in how you expose your agent.

Why this matters: - Model Serving: Traditional endpoint for inference workloads, autoscaling, pay-per-token pricing - Databricks Apps: Full web applications with custom UI, background jobs, and richer integrations - Single Configuration: Switch deployment targets with one line change — no code rewrite needed - Environment Consistency: Same YAML config works in both environments

Comparison:

Feature	Model Serving	Databricks Apps
Use Case	Inference API endpoint	Full web application
Scaling	Auto-scales based on load	Manual scaling configuration
UI	API only	Custom web UI possible
Pricing	Pay per token/request	Compute-based
Deployment Speed	~2-5 minutes	~2-5 minutes
Best For	API integrations, high throughput	Interactive apps, custom UX

How to configure:

app:
  name: my_agent
  # Serving mode is chosen at deploy time via --mode (default: apps)

  # Model Serving specific options (used when deploying with --mode model_serving)
  endpoint_name: my_agent_endpoint
  workload_size: Small
  scale_to_zero: true

  agents:
    - *my_agent

Deploy to Model Serving:

dao-ai agent sync -c config.yaml --mode model_serving

Deploy to Databricks Apps:

dao-ai agent sync -c config.yaml --mode apps

CLI override: The --mode flag selects the serving target at deploy time (default: apps).

Behind the scenes: - Model Serving deployments create an MLflow model and serving endpoint - Apps deployments create a Databricks App with MLflow experiment tracking - Both share the same agent code, tools, and orchestration logic - Environment variables and secrets are automatically configured for each platform

2. Multi-Tool Support

What are tools? Tools are actions an agent can perform — like querying a database, calling an API, or running custom code.

DAO supports several first-class tool types plus an escape hatch for arbitrary factory functions:

Tool Type	Use Case	Example
Genie	Natural-language SQL via a Genie space, with optional caching	type: genie + genie_room: *room
AI Search	Semantic / hybrid search over a Databricks AI Search index (formerly Vector Search), with optional instructed retrieval	type: ai_search (or legacy vector_search) + retriever: *retriever
Lakebase Search	ANN / BM25 / hybrid (RRF) retrieval over a Databricks Lakebase Postgres table using the lakebase_vector and lakebase_text extensions	type: lakebase_search + vector_store: *store (or retriever: *retriever)
SQL	Run a fixed, optionally parameterized SQL statement against a SQL warehouse or a Lakebase / Postgres database	type: sql + warehouse: *wh (or database: *db) + statement:
Search	Web search (DuckDuckGo)	type: search
Unity Catalog	Governed SQL functions	type: unity_catalog + resource: *fn
MCP	External services via Model Context Protocol	type: mcp + connection: *mcp_conn
Python	Custom business logic — direct function import	type: python + name: my_pkg.my_tool
Inline	Quick prototyping — define tool code directly in YAML	type: inline + code:
Factory	Escape hatch for arbitrary factory functions not yet first-class	type: factory + name: dao_ai.tools.<factory>

tools:
  # Genie - first-class, no factory boilerplate
  sales_genie:
    name: sales_genie
    function:
      type: genie
      genie_room: *sales_genie_room
      name: query_sales
      description: "Query sales analytics by region, product, time period."
      # Add caching → tool becomes a toolkit (query + feedback) automatically
      lru_cache:
        warehouse: *shared_warehouse
        capacity: 100
        time_to_live_seconds: 3600

  # AI Search (formerly Vector Search) - first-class, supports instructed retriever
  product_search:
    name: product_search
    function:
      type: ai_search   # legacy alias: vector_search
      retriever: *products_retriever     # or: vector_store: *products_vs
      name: product_search
      description: "Search the product catalog by description / brand / category."

  # Web Search (DuckDuckGo) - zero config
  web_search:
    name: web_search
    function:
      type: search

  # Unity Catalog - governed SQL function
  sku_lookup:
    name: find_product_by_sku
    function:
      type: unity_catalog
      resource: *find_product_by_sku

  # SQL - fixed, parameterized statement against a warehouse or Lakebase DB.
  # LLM-sourced params appear in the tool schema (:name for warehouse,
  # %(name)s for Lakebase); context-sourced params bind from runtime Context.
  category_inventory:
    name: category_inventory
    function:
      type: sql
      database: *retail_database          # or: warehouse: *shared_warehouse
      statement: |
        SELECT product_name, on_hand FROM inventory
        WHERE store_num = %(store_num)s AND category = %(category)s
      description: "On-hand inventory for a category at the current store."
      params:
        - name: category               # LLM supplies this (source defaults to llm)
          type: string
          description: "Product category to filter by."
        - name: store_num              # bound from Context, hidden from the model
          source: context
          type: int

  # MCP - external service integration
  github_mcp:
    name: github
    function:
      type: mcp
      transport: streamable_http
      connection: *github_connection

  # Python - direct import
  time_tool:
    name: current_time
    function:
      type: python
      name: dao_ai.tools.current_time_tool

  # Inline - define tool code directly in YAML (great for prototyping)
  calculator:
    name: calculator
    function:
      type: inline
      code: |
        from langchain.tools import tool

        @tool
        def calculator(expression: str) -> str:
            """Evaluate a mathematical expression."""
            return str(eval(expression))

  # First-class — call a Model Serving endpoint as a tool
  specialist_agent:
    name: specialist
    function:
      type: serving_endpoint
      endpoint: *external_agent_endpoint
      description: "Delegate to external specialist agent"

  # Factory — escape hatch for any custom factory function
  custom_factory_tool:
    name: custom
    function:
      type: factory
      name: my_package.factories.create_custom_tool
      args:
        my_arg: value

Migrating from type: factory to first-class types

The old type: factory + name: dao_ai.tools.create_* shape continues to work indefinitely — no deprecation. If you're starting fresh, prefer the first-class types below for the most common cases:

Old shape (still works)	New shape
type: factory, name: dao_ai.tools.create_genie_tool, args: { genie_room: ..., lru_cache_parameters: ... }	type: genie, genie_room: ..., lru_cache: ...
type: factory, name: dao_ai.tools.create_genie_toolkit, args: { genie_room: ..., lru_cache_parameters: ..., context_aware_cache_parameters: ... }	type: genie, genie_room: ..., lru_cache: ..., context_aware_cache: ... (any cache promotes to toolkit)
type: factory, name: dao_ai.tools.create_ai_search_tool, args: { retriever: ... }	type: ai_search, retriever: ...
type: factory, name: dao_ai.tools.create_search_tool	type: search
type: factory, name: dao_ai.tools.sql.create_execute_statement_tool, args: { warehouse: ..., statement: ... }	type: sql, warehouse: ... (or database: ...), statement: ..., optional params: ...
type: factory, name: dao_ai.tools.create_agent_endpoint_tool, args: { llm: <endpoint>, ... }	type: serving_endpoint, endpoint: <name-or-model> (FMAPI + UC ResponsesAgent endpoints; lazy task discovery)
type: factory, name: dao_ai.tools.create_responses_agent_tool / create_chat_completions_agent_tool, args: { app: ..., ... }	type: app, app: <app> (lazy /agent/info discovery; set api: to skip)
(no factory equivalent — A2A is first-class only, since v0.1.80)	type: a2a, agent_card_url: ...

Cache parameter field renames on type: genie: - lru_cache_parameters → lru_cache - context_aware_cache_parameters → context_aware_cache - in_memory_context_aware_cache_parameters → in_memory_context_aware_cache

3. On-Behalf-Of User Support

What is this? Many Databricks resources (like SQL warehouses, Genie spaces, and LLMs) can operate "on behalf of" the end user, using their permissions instead of the agent's service account credentials.

Why this matters: - Security: Users can only access data they're authorized to see - Compliance: Audit logs show the actual user who made the request, not a service account - Governance: Unity Catalog permissions are enforced at the user level - Flexibility: No need to grant broad permissions to a service account

How it works: When on_behalf_of_user: true is set, the resource inherits the calling user's identity and permissions from the API request.

Supported resources:

resources:
  # Models - use caller's permissions for model access
  models:
    claude: &claude
      name: databricks-claude-3-7-sonnet
      on_behalf_of_user: true      # Inherits caller's model access

  # Warehouses - execute SQL as the calling user
  # Provide warehouse_id directly, or just name to resolve the ID automatically
  warehouses:
    analytics: &analytics_warehouse
      warehouse_id: abc123def456   # or omit and use name instead
      on_behalf_of_user: true      # Queries run with user's data permissions

  # Genie - natural language queries with user's context
  # Provide space_id directly, or just name to resolve the ID automatically
  genie_rooms:
    sales_genie: &sales_genie
      space_id: xyz789             # or omit and use name instead
      on_behalf_of_user: true      # Genie uses caller's data access

Real-world example:
Your agent helps employees query HR data. With on_behalf_of_user: true: - Managers can see their team's salary data - Individual contributors can only see their own data - HR admins can see all data

The same agent code enforces different permissions for each user automatically.

Important notes: - The calling application must pass the user's identity in the API request - The user must have the necessary permissions on the underlying resources - Not all Databricks resources support on-behalf-of functionality

4. Advanced Caching (Genie Queries)

Why caching matters: When users ask similar questions repeatedly, you don't want to pay for the same AI processing over and over. Caching stores results so you can reuse them.

What makes DAO's caching special: Instead of just storing old answers (which become stale), DAO stores the SQL query that Genie generated. When a similar question comes in, DAO re-runs the SQL to get fresh data without calling the expensive Genie API again.

💰 Cost savings: If users frequently ask "What's our inventory?", the first query costs $X (Genie API call). Subsequent similar queries cost only pennies (just running SQL).

DAO provides two-tier caching for Genie natural language queries, dramatically reducing costs and latency. Configure on the first-class type: genie tool — adding any cache automatically promotes the tool to a toolkit (query + feedback).

genie_tool:
  name: sales_genie
  function:
    type: genie
    genie_room: *retail_genie_room
    name: query_sales
    description: "Query sales analytics by region, product, time period."

    # L1: Fast O(1) exact match lookup
    lru_cache:
      warehouse: *warehouse
      capacity: 1000                   # Max cached queries (default: 1000)
      time_to_live_seconds: 86400      # 1 day (default), use -1 or None for never expire

    # L2: Context-aware similarity search via pg_vector (cosine similarity)
    context_aware_cache:
      database: *postgres_db
      warehouse: *warehouse
      embedding_model: *embedding_model  # Default: databricks-gte-large-en
      similarity_threshold: 0.85         # 0.0-1.0 (default: 0.85), higher = stricter
      time_to_live_seconds: 86400        # 1 day (default), use -1 or None for never expire
      table_name: genie_context_aware_cache   # Optional, default: genie_context_aware_cache
      # IVFFlat index tuning (auto-computed by default, scales to 1M+ rows)
      # ivfflat_lists: null              # Auto: max(100, sqrt(row_count))
      # ivfflat_probes: null             # Auto: max(10, sqrt(lists))
      # ivfflat_candidates: 20           # Top-K for Python reranking

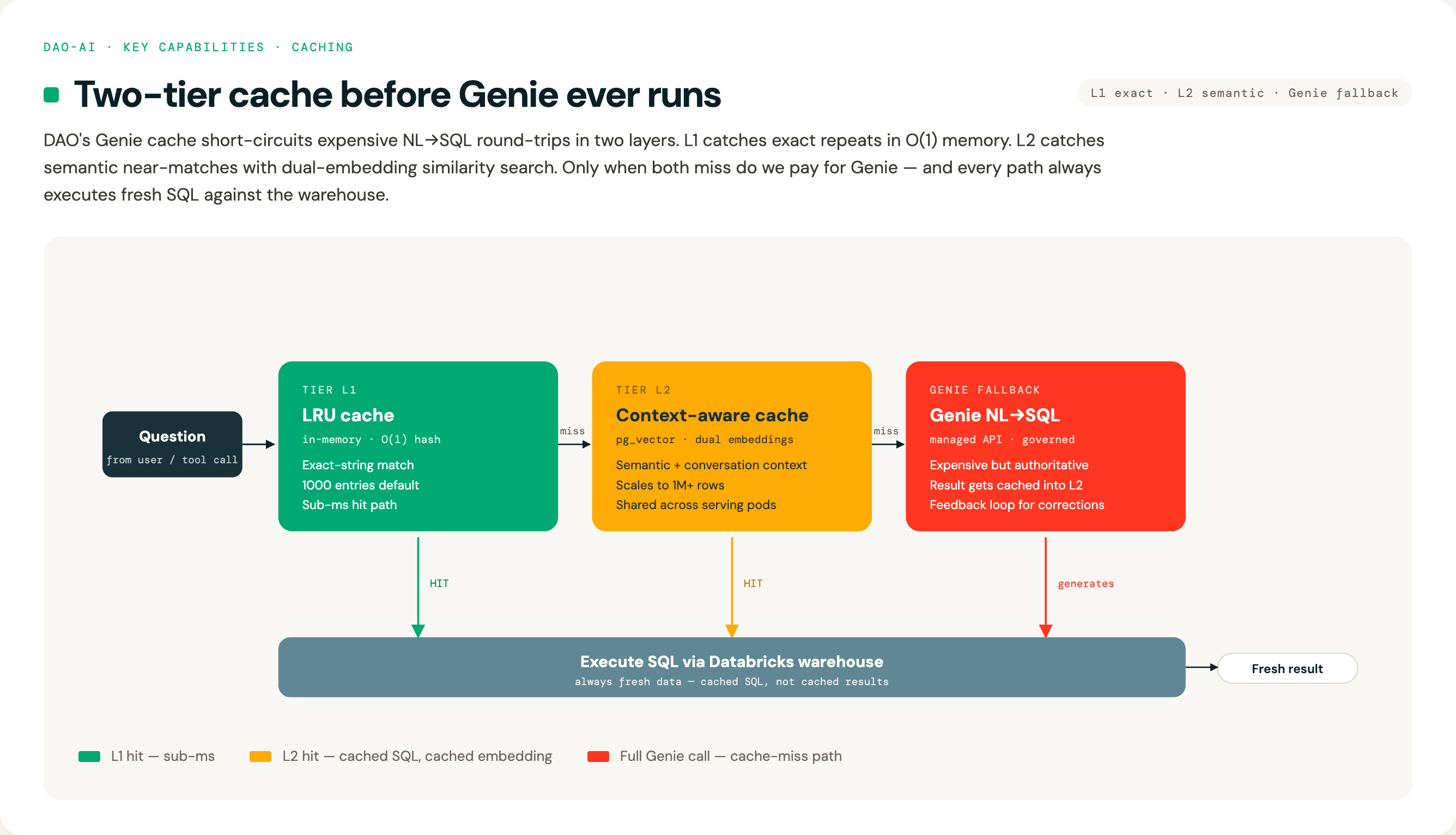

Cache Architecture

LRU Cache (L1)

The LRU (Least Recently Used) Cache provides instant lookups for exact question matches:

Parameter	Default	Description
capacity	1000	Maximum number of cached queries
time_to_live_seconds	86400	Cache entry lifetime (-1 = never expire)
warehouse	Required	Databricks warehouse for SQL execution

Best for: Repeated exact queries, chatbot interactions, dashboard refreshes

Context-Aware Cache (L2)

The Context-Aware Cache finds similar questions even when worded differently using vector embeddings and similarity search. It includes conversation context awareness to improve matching in multi-turn conversations. DAO provides two implementations:

PostgreSQL-Based Context-Aware Cache

Uses PostgreSQL with pg_vector for persistent, multi-instance shared caching. Similarity search uses cosine similarity with a two-phase approach: an IVFFlat index-optimized scan retrieves top-K candidates by question distance, then Python-side reranking applies combined similarity, threshold checks, and bidirectional context-skip logic.

Parameter	Default	Description
similarity_threshold	0.85	Minimum cosine similarity for cache hit (0.0-1.0)
time_to_live_seconds	86400	Cache entry lifetime (-1 = never expire)
embedding_model	databricks-gte-large-en	Model for generating question embeddings
database	Required	PostgreSQL with pg_vector extension
warehouse	Required	Databricks warehouse for SQL execution
table_name	genie_context_aware_cache	Table name for cache storage
context_window_size	4	Number of previous conversation turns to include
context_similarity_threshold	0.80	Minimum similarity for conversation context (skipped when either side has no context)
question_weight	0.6	Weight for question similarity in combined score (0.0-1.0)
context_weight	0.4	Weight for context similarity (computed as 1 - question_weight if not set)
embedding_dims	Auto-detected	Embedding vector dimensions (auto-detected from model if not specified)
max_context_tokens	2000	Maximum token length for conversation context embeddings
ivfflat_lists	null (auto)	IVF index lists. Auto-computed as max(100, sqrt(row_count)) at index creation
ivfflat_probes	null (auto)	Lists probed per query. Auto-computed as max(10, sqrt(lists))
ivfflat_candidates	20	Top-K candidates retrieved before Python-side reranking

Scaling: With auto-computed defaults, the cache scales to 1 million+ rows without manual tuning. The IVFFlat index parameters adapt to table size automatically.

Best for: Production deployments with multiple instances, large cache sizes (thousands+), and cross-instance cache sharing

In-Memory Context-Aware Cache

Uses in-memory storage without external database dependencies:

genie_tool:
  name: sales_genie
  function:
    type: genie
    genie_room: *retail_genie_room

    # In-memory context-aware cache (no database required)
    in_memory_context_aware_cache:
      warehouse: *warehouse
      embedding_model: *embedding_model  # Default: databricks-gte-large-en
      similarity_threshold: 0.85         # 0.0-1.0 (default: 0.85)
      time_to_live_seconds: 86400        # 1 day (default), use -1 or None for never expire
      capacity: 1000                     # Max cache entries (LRU eviction when full)
      context_window_size: 4             # Number of previous conversation turns (default)
      context_similarity_threshold: 0.80 # Minimum context similarity (bidirectional skip)
      question_weight: 0.6               # Weight for question similarity
      context_weight: 0.4                # Weight for context similarity
      embedding_dims: null               # Auto-detected from model
      max_context_tokens: 2000           # Max context token length

Parameter	Default	Description
similarity_threshold	0.85	Minimum cosine similarity for cache hit (0.0-1.0)
time_to_live_seconds	86400	Cache entry lifetime (-1 = never expire)
embedding_model	databricks-gte-large-en	Model for generating question embeddings
warehouse	Required	Databricks warehouse for SQL execution
capacity	1000	Maximum cache entries (LRU eviction when full)
context_window_size	4	Number of previous conversation turns to include
context_similarity_threshold	0.80	Minimum similarity for conversation context (skipped when either side has no context)
question_weight	0.6	Weight for question similarity in combined score (0.0-1.0)
context_weight	0.4	Weight for context similarity (computed as 1 - question_weight if not set)
embedding_dims	Auto-detected	Embedding vector dimensions (auto-detected from model if not specified)
max_context_tokens	2000	Maximum token length for conversation context embeddings

Best for: Single-instance deployments, development/testing, scenarios without database access, moderate cache sizes (hundreds to low thousands)

Key Differences: - ✅ No external database required - Simpler setup and deployment - ✅ Same cosine similarity algorithm - Consistent behavior with PostgreSQL version - ⚠️ Per-instance cache - Each replica has its own cache (not shared) - ⚠️ No persistence - Cache is lost on restart - ⚠️ Memory-bound - Limited by available RAM; use capacity limits

Best for: Catching rephrased questions like: - "What's our inventory status?" ≈ "Show me stock levels" - "Top selling products this month" ≈ "Best sellers in December"

Conversation Context Awareness:
The context-aware cache tracks conversation history to resolve ambiguous references: - User: "Show me products with low stock" - User: "What about them in the warehouse?" ← Uses context to understand "them" = low stock products

This works by embedding both the current question and recent conversation turns, then computing a weighted similarity score. This dramatically improves cache hits in multi-turn conversations where users naturally use pronouns and references.

Weight Configuration:
The question_weight and context_weight parameters control how question vs conversation context similarity are combined into the final score: - Both weights must sum to 1.0 (if only one is provided, the other is computed automatically) - Higher question_weight prioritizes matching the exact question wording - Higher context_weight prioritizes matching the conversation context, useful for multi-turn conversations with pronouns and references

Cache Behavior

1. SQL Caching, Not Results: The cache stores the generated SQL query, not the query results. On a cache hit, the SQL is re-executed against your warehouse, ensuring data freshness.

2. Conversation-Aware Matching: The context-aware cache uses a rolling window of recent conversation turns (default: 4) to provide context for similarity matching. This helps resolve pronouns and references like "them", "that", or "the same products" by considering what was discussed previously. A bidirectional context-skip rule automatically bypasses the context threshold when either the cached entry or the current query has no conversation context, preventing false misses for first messages or context-free queries.

3. Refresh on Hit: When a context-aware cache entry is found but expired:

4. The expired entry is deleted
5. A cache miss is returned
6. Genie generates fresh SQL

7. The new SQL is cached

8. Multi-Instance Aware: Each LRU cache is per-instance (in Model Serving, each replica has its own). The PostgreSQL context-aware cache is shared across all instances. The in-memory context-aware cache is per-instance (not shared).

9. Space ID Partitioning: Cache entries are isolated per Genie space, preventing cross-space cache pollution.

Cache Invalidation and Auto-Recovery

When any cache is configured on a type: genie tool, the tool is automatically promoted to a toolkit that includes a feedback tool ({name}_feedback). The LLM can call this tool to invalidate stale cache entries. This is critical because LLMs tend to normalize user questions into canonical forms before calling tools — rephrasing a question rarely produces a different cache key.

Feedback tool: Call with rating='negative' when results are wrong, empty, or don't match the question. This invalidates the cached SQL across all cache layers and sends feedback to the Genie API.

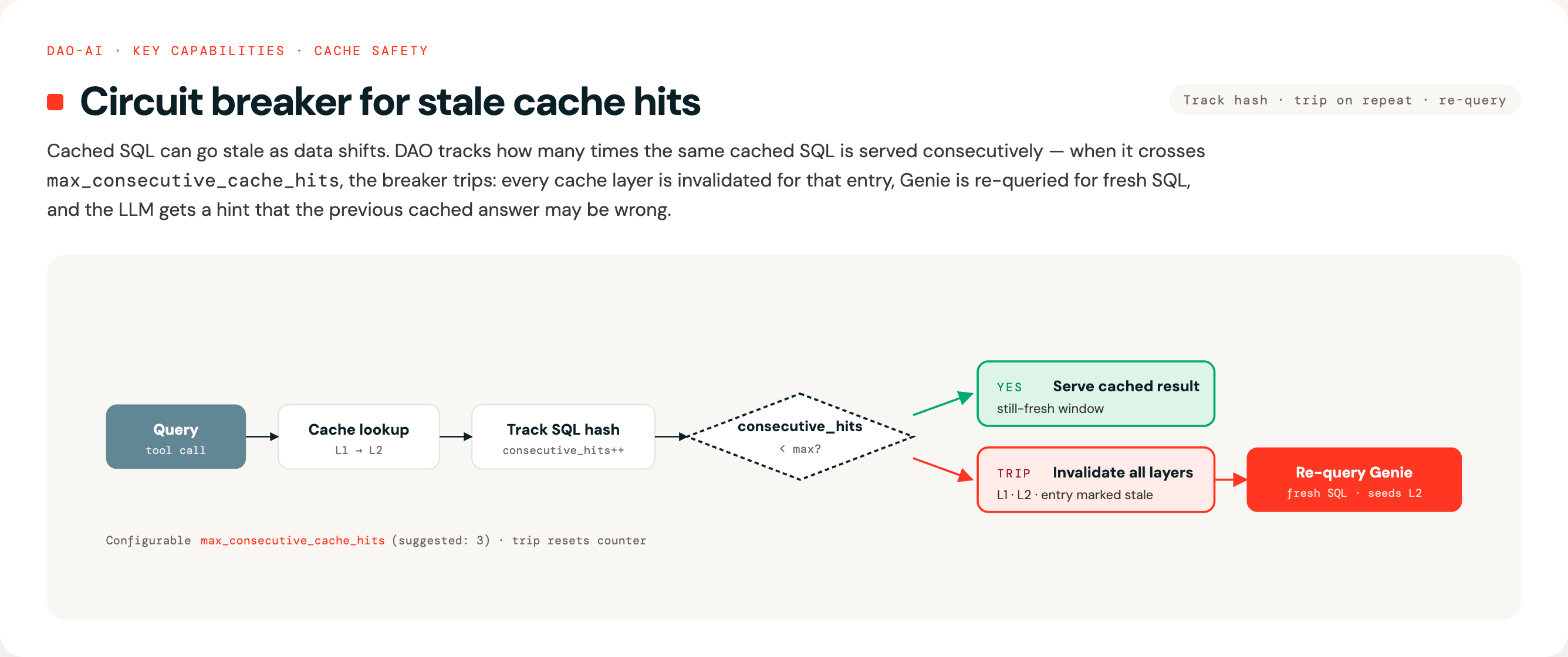

Auto-Recovery (Circuit Breaker): The toolkit can automatically detect and recover from stale cache loops using the max_consecutive_cache_hits parameter. When the same cached SQL is returned N times consecutively, the cache entry is automatically invalidated across all layers and a fresh query is sent to Genie.

genie_tool:
  name: sales_genie
  function:
    type: genie
    genie_room: *retail_genie_room
    lru_cache:
      warehouse: *warehouse
      capacity: 1000
      time_to_live_seconds: 86400
    max_consecutive_cache_hits: 3   # Auto-invalidate after 3 identical cache hits

Force toolkit mode without caches: Set enable_feedback: true on a type: genie tool to get the feedback tool even when no cache is configured.

Parameter	Default	Description
max_consecutive_cache_hits	None (disabled)	Auto-invalidate after N consecutive identical cache hits. Suggested: 3.

Tool response enrichments: When caching is active, the query tool response includes: - cache_hit: Whether the result was served from cache - _hint: Guidance for the LLM to call the feedback tool if the cached result is wrong - consecutive_cache_hits: How many times the same cached SQL has been returned consecutively (when > 1) - auto_invalidated: Set to true when the circuit breaker triggered auto-invalidation

5. AI Search Reranking & Instructed Retrieval

(AI Search is the current Databricks name; older docs and configs may still call it Vector Search — dao-ai accepts both.)

lakebase_search parity (Stage 2, PR A): the same rerank field with identical semantics is now available on LakebaseRetrieverModel. Set rerank: true for the default FlashRank model or provide a full RerankParametersModel — applies uniformly to the retriever's ANN, BM25, or HYBRID output. See examples/20_lakebase_search/reranked.yaml.

The problem: AI Search (semantic similarity) is fast but sometimes returns loosely related results. It's like a librarian who quickly grabs 50 books that might be relevant.

The solution: Reranking is like having an expert review those 50 books and pick the best 5 that actually answer your question.

Benefits: - ✅ More accurate search results - ✅ Better user experience (relevant answers) - ✅ No external API calls (runs locally with FlashRank)

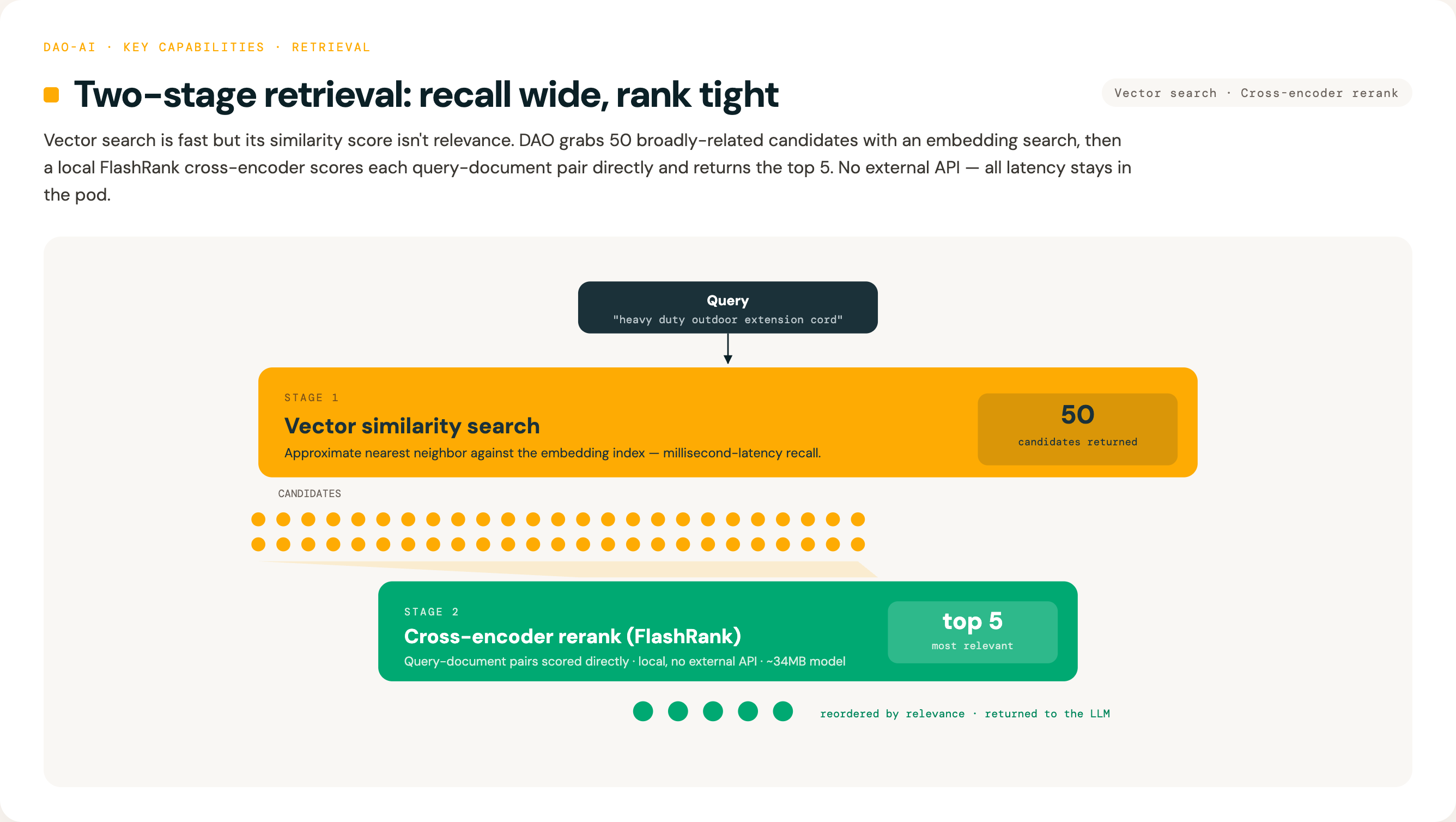

DAO supports two-stage retrieval with FlashRank reranking to improve search relevance without external API calls:

retrievers:
  products_retriever: &products_retriever
    vector_store: *products_vector_store
    columns: [product_id, name, description, price]
    search_parameters:
      num_results: 50        # Retrieve more candidates
      query_type: ANN
    rerank:
      model: ms-marco-MiniLM-L-12-v2   # Local cross-encoder model
      top_n: 5                          # Return top 5 after reranking

How It Works

Why Reranking?

Approach	Pros	Cons
AI Search Only	Fast, scalable	Embedding similarity ≠ relevance
Reranking	More accurate relevance	Slightly higher latency
Both (Two-Stage)	Best of both worlds	Optimal quality/speed tradeoff

Vector embeddings capture semantic similarity but may rank loosely related documents highly. Cross-encoder reranking evaluates query-document pairs directly, dramatically improving result quality for the final user.

Available Models

See FlashRank for the full list of supported models.

Model	Size	Speed	Use Case
ms-marco-TinyBERT-L-2-v2	~4MB	⚡⚡⚡ Fastest	High-throughput, latency-sensitive
ms-marco-MiniLM-L-12-v2	~34MB	⚡⚡ Fast	Default, best cross-encoder
rank-T5-flan	~110MB	⚡ Moderate	Best non cross-encoder
ms-marco-MultiBERT-L-12	~150MB	Slower	Multilingual (100+ languages)
ce-esci-MiniLM-L12-v2	-	⚡⚡ Fast	E-commerce optimized
miniReranker_arabic_v1	-	⚡⚡ Fast	Arabic language

Configuration Options

rerank:
  model: ms-marco-MiniLM-L-12-v2    # FlashRank model name
  top_n: 10                          # Documents to return (default: all)
  cache_dir: ~/.dao_ai/cache/flashrank  # Model weights cache location
  columns: [description, name]       # Columns for Databricks Reranker (optional)

Note: Model weights are downloaded automatically on first use (~34MB for MiniLM-L-12-v2).

Instructed Retrieval

lakebase_search parity (Stage 2, PR B): the same instructed: field works on LakebaseRetrieverModel. The pipeline (router → decomposition → parallel search → RRF merge → instruction rerank → verifier retry loop) is shared via dao_ai.tools.instructed_pipeline — both retrievers pass a backend adapter callable. See examples/20_lakebase_search/instructed.yaml.

The problem: Standard AI Search ignores metadata constraints entirely. When a user asks "Milwaukee power drills under $200 from last month", semantic similarity alone can't enforce brand, price, or recency constraints. Queries with multiple intents or exclusions ("cordless tools excluding DeWalt") fare even worse.

The solution: Instructed Retrieval extends basic RAG by automatically translating natural language constraints into executable metadata filters. An LLM decomposes complex queries into focused subqueries with filters, executes them in parallel, and merges results using Reciprocal Rank Fusion (RRF).

Benefits: - Automatic filter extraction from natural language ("under $200" becomes price < 200) - Multi-intent queries split into parallel subqueries for broader recall - RRF merging produces a unified, deduplicated ranking - Optional instruction-aware reranking, query routing, and result verification

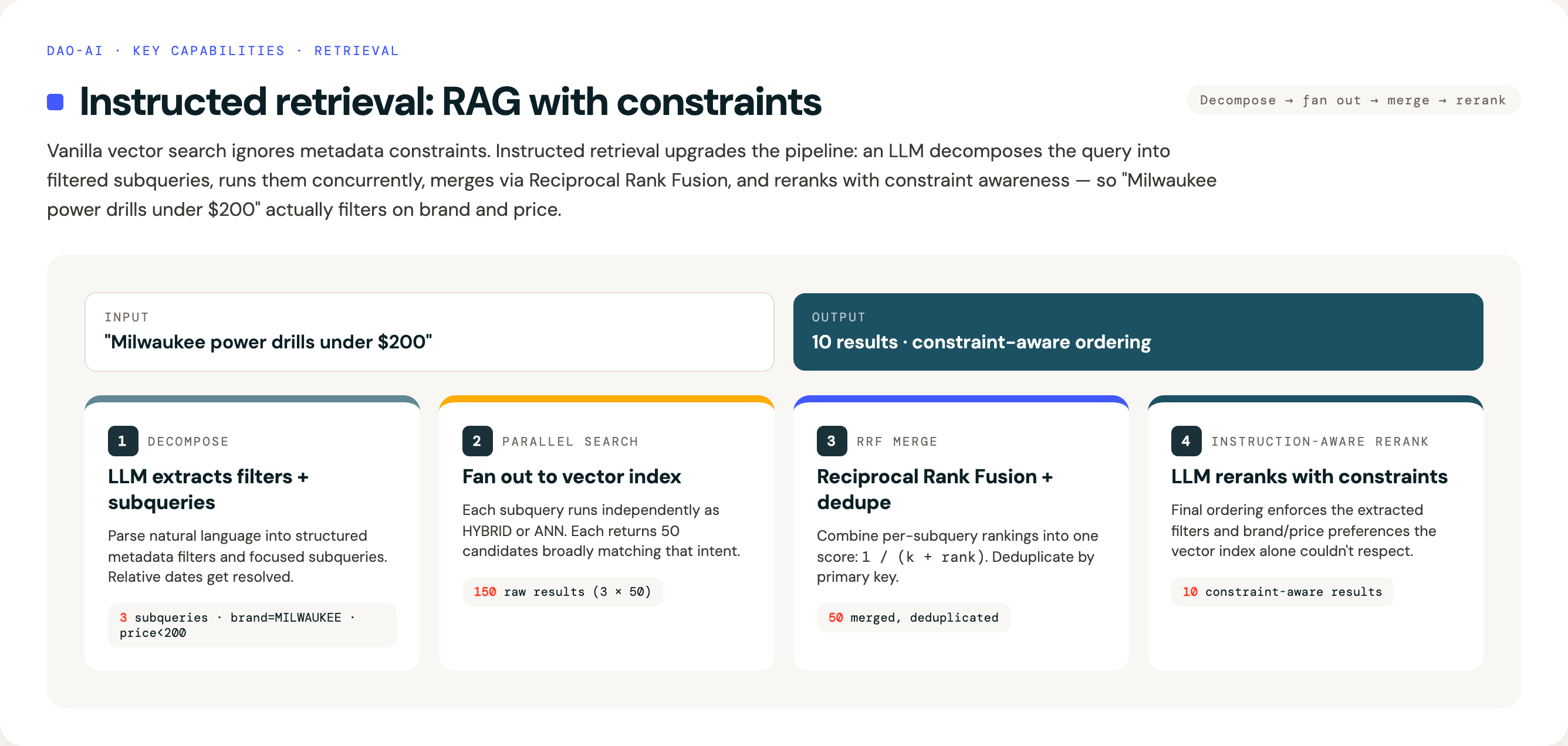

How Instructed Retrieval Works

Instructed Retrieval Configuration

retrievers:
  instructed_retriever: &instructed_retriever
    vector_store: *products_vector_store
    search_parameters:
      num_results: 50
      query_type: HYBRID
    instructed:
      # Column metadata — single source of truth for all pipeline components
      columns:
        - name: brand_name
          type: string
          description: "Brand/manufacturer (MILWAUKEE, DEWALT, MAKITA, etc.)"
        - name: merchandise_class
          type: string
          description: "Product category (POWER TOOLS, HAND TOOLS, PAINT, etc.)"
        - name: price
          type: number
          description: "Price in USD"
          operators: ["", "<", "<=", ">", ">="]
        - name: updated_at
          type: datetime
          description: "Last update timestamp"
          operators: ["", ">", ">=", "<", "<="]
      constraints:
        - "Use merchandise_class for category filtering"
        - "Use brand_name for brand filtering"
      decomposition:
        model: *fast_llm          # Smaller model for low latency
        max_subqueries: 3
        rrf_k: 60
        normalize_filter_case: uppercase
        examples:
          - query: "cheap Milwaukee drills"
            filters: {"price <": 100, "brand_name": "MILWAUKEE"}
          - query: "cordless power tools excluding DeWalt"
            filters: {"product_name LIKE": "cordless", "brand_name NOT": "DEWALT"}
      # Instruction-aware LLM reranking (uses schema context above)
      rerank:
        model: *fast_llm
        instructions: |
          Prioritize results based on user constraints:
          - Brand preferences: boost specified brands, demote excluded brands
          - Category: prefer exact merchandise_class matches
        top_n: 10

Key Configuration Fields

Field	Default	Description
columns	Required	Column metadata (name, type, description, operators) used by all pipeline components
constraints	null	Default constraints to always apply (e.g., "Prefer recent products")
decomposition.model	null	LLM for query decomposition — use a fast model (Haiku, GPT-3.5) for low latency
decomposition.max_subqueries	3	Maximum number of parallel subqueries
decomposition.rrf_k	60	RRF constant — lower values weight top ranks more heavily
decomposition.examples	null	Few-shot examples teaching your metadata "dialect" for filter translation
decomposition.normalize_filter_case	null	Auto-normalize filter string values to uppercase or lowercase

Optional Pipeline Components

Beyond core query decomposition and RRF merging, instructed retrieval supports three additional pipeline stages:

Instruction-Aware Reranking (instructed.rerank): An LLM-based reranking stage that uses schema context and custom instructions to reorder results. Unlike FlashRank (which is model-based and local), this stage understands your domain constraints and can enforce brand preferences, category matching, and other business rules.

instructed:
  rerank:
    model: *fast_llm
    instructions: "Prioritize by brand preferences and category match"
    top_n: 10

Query Router (instructed.router): Automatically routes simple queries (e.g., "drill bits") through a fast standard search path and complex queries (e.g., "Milwaukee drills excluding DeWalt") through the full instructed pipeline. When auto_bypass: true (default), simple queries skip the instruction reranker and verifier entirely.

instructed:
  router:
    model: *fast_llm
    default_mode: standard      # Fallback if routing fails
    auto_bypass: true           # Skip expensive stages for simple queries

Result Verifier (instructed.verifier): Validates that returned results satisfy the user's constraints. Returns structured feedback (unmet constraints, suggested filter adjustments) for intelligent retry when results don't match intent.

instructed:
  verifier:
    model: *fast_llm
    on_failure: warn_and_retry  # Options: warn, retry, warn_and_retry
    max_retries: 1

Latency Comparison

Configuration	Latency	Use Case
Standard (no decomposition)	~100ms	Simple keyword queries
Instructed (decomposition + RRF)	~200-300ms	Queries with metadata constraints
Full Pipeline (all stages)	~800-1200ms	Complex queries with routing and verification

Fallback behavior: If decomposition fails (LLM error, parsing error), the system automatically falls back to standard single-query search, ensuring robustness in production.

Example configurations: See examples/15_instructed_retriever/ for complete working examples including basic instructed retrieval and the full pipeline with router and verifier.

6. Human-in-the-Loop Approvals

Why this matters: Some actions are too important to automate completely. For example, you might want human approval before an agent: - Deletes data - Sends external communications - Places large orders - Modifies production systems

How it works: Add a simple configuration to any tool, and the agent will pause and ask for human approval before executing it.

Add approval gates to sensitive tool calls without changing tool code:

tools:
  dangerous_operation:
    function:
      type: python
      name: my_package.dangerous_function
      human_in_the_loop:
        review_prompt: "This operation will modify production data. Approve?"

7. Auditable Tool Invocations & Approval Receipts

Why this matters: Compliance-grade workloads need cryptographic-grade answers to "who approved this exact action?" — SOX, SOC2, and HIPAA all require it. Regular HITL pauses execution; audit-enabled HITL binds the approval to a byte-exact hash of the arguments, records a tamper-evident receipt to Lakebase with the approver's identity, links to the MLflow trace, and fail-closes the tool call if anything in the arg payload drifts between approval and execution.

Composition matrix:

Configuration	What happens
audit: only	Every tool invocation writes an execution receipt.
human_in_the_loop: only	Pauses for approval — no receipt.
audit: + human_in_the_loop:	Pauses for approval; args-hash bound; receipt for approve/edit/reject/respond.

tools:
  refund_customer:
    function:
      type: python
      name: my_pkg.refund_customer
      audit:
        database: *audit_db      # anchor reuse
        table: audit_receipts
      human_in_the_loop:
        review_prompt: "Refund of ${amount} to customer ${customer_id}?"
        allowed_decisions: [approve, edit, reject]

Agents can query their own audit trail via AuditToolkit — a first-class LangChain toolkit factory that expands to query_audit_receipts, get_audit_receipt_by_id, and verify_audit_hash_chain:

tools:
  audit_toolkit:
    function:
      type: factory
      name: dao_ai.tools.audit_query.create_audit_toolkit
      args:
        audit: *audit_config

Full deep-dive with call-flow diagrams for every decision path (approve / edit / reject / respond / args tampering), receipt schema, sensitive-data policy, and deployment steps: docs/audit.md.

8. Memory & State Persistence

What is memory? Your agent needs to remember past conversations. When a user asks "What about size XL?" the agent should remember they were talking about shirts.

Memory backend options: 1. In-Memory: Fast but temporary (resets when agent restarts). Good for testing and development. 2. PostgreSQL: Persistent relational storage (survives restarts). Good for production systems requiring conversation history and user preferences. 3. Lakebase: Databricks-managed PostgreSQL instance with Unity Catalog integration. Good for production deployments that want to stay within the Databricks ecosystem.

Why Lakebase? - Native Databricks integration - No external database required - Managed PostgreSQL - ACID transactions, full relational database capabilities - Unified governance - Same Unity Catalog permissions as your data - Cost-effective - Uses existing Databricks infrastructure

Configure conversation memory with in-memory, PostgreSQL, or Lakebase backends:

memory:
  # Option 1: PostgreSQL (external database)
  checkpointer:
    name: conversation_checkpointer
    type: postgres
    database: *postgres_db

  store:
    name: user_preferences_store
    type: postgres
    database: *postgres_db
    embedding_model: *embedding_model

# Option 2: Lakebase (Databricks-native)
# First define the database in resources:
resources:
  databases:
    my_lakebase: &my_lakebase
      project: "my-project"        # autoscaling Lakebase project name
      branch: "main"               # optional, auto-resolved if omitted
      # project: "my-lakebase-project"

memory:
  checkpointer:
    name: conversation_checkpointer
    database: *my_lakebase

  store:
    name: user_preferences_store
    database: *my_lakebase
    embedding_model: *embedding_model

Choosing a backend: - In-Memory: Development and testing only - PostgreSQL: When you need external database features or already have PostgreSQL infrastructure - Lakebase: When you want Databricks-native persistence with Unity Catalog governance

Long-Term Memory

Beyond conversation history, DAO supports long-term memory that persists user profiles, preferences, and interaction patterns across sessions. This enables personalized responses without the user repeating themselves.

Long-term memory has three components:

1. Structured Schemas -- Define what to remember using typed schemas:
2. user_profile -- A consolidated profile (name, role, expertise, communication style, goals) that merges new information over time
3. preference -- Individual preference records (category, preference, context) searchable independently

4. episode -- Records of notable interactions (situation, approach, outcome, lesson) for experience-based learning

5. Background Extraction -- Automatically extracts memories from conversations in a background thread after each turn, adding zero latency to responses. Uses langmem's ReflectionExecutor with debouncing.

6. Automatic Memory Injection -- Before each model call, relevant memories are automatically searched and injected into the system prompt via MemoryContextMiddleware. The agent receives personalized context without needing to call search_memory explicitly.

Configure long-term memory with the extraction block:

memory:
  checkpointer:
    name: conversation_checkpointer
    database: *my_lakebase

  store:
    name: memory_store
    database: *my_lakebase
    embedding_model: *embedding_model

  extraction:
    schemas:
      - user_profile
      - preference
      - episode
    instructions: |
      Extract the user's name, role, preferences, and any notable
      interaction patterns. Update the user profile with new information.
    auto_inject: true           # Inject relevant memories into prompts
    auto_inject_limit: 5        # Max memories to inject per turn
    background_extraction: true # Extract memories in background thread
    extraction_model: *small_llm   # Optional: cheaper model for extraction
    query_model: *small_llm        # Optional: cheaper model for search queries

Memory tools available to agents:

Tool	Description
manage_memory	Agent-driven CRUD on memory items (create, update, delete)
search_memory	Semantic search over stored memories
search_user_profile	Direct lookup of the user's consolidated profile

The manage_memory and search_memory tools are automatically added when a store is configured. The search_user_profile tool is added when the user_profile schema is included in the extraction config.

9. Reusable Prompts

The problem: The same system prompt is often shared by several agents, or a long prompt clutters an agent definition and is hard to reuse.

The solution: Define prompts once as first-class config objects under a top-level prompts: block, then reference them from agents (and guardrails, supervisors) via YAML anchors/aliases. The template text lives inline in your config.

prompts:
  product_expert_prompt: &product_expert_prompt
    schema: *retail_schema
    name: product_expert_prompt
    template: |
      You are a product expert...
    tags:
      team: retail

agents:
  product_expert:
    prompt: *product_expert_prompt  # Reuse the shared prompt

10. Guardrails & Response Quality Middleware

What are guardrails? Safety and quality controls that validate agent responses before they reach users. Think of them as quality assurance checkpoints.

Why this matters: AI models can sometimes generate responses that are: - Inappropriate or unsafe - Too long or too short - Missing required information (like citations) - In the wrong format or tone - Off-topic or irrelevant - Containing sensitive keywords that should be blocked - Not grounded in the retrieved data (hallucinations)

DAO provides two complementary middleware systems for response quality control:

---

A. Guardrail Middleware (Content Safety & Quality)

GuardrailMiddleware uses MLflow judges (mlflow.genai.judges.make_judge) to evaluate responses against custom criteria, with automatic retry and improvement loops. The prompt determines the evaluation type -- tone, completeness, veracity/groundedness, or any custom criteria.

Tool context from ToolMessage objects in the conversation (search results, SQL results, Genie responses) is automatically extracted and included in the inputs dict. This enables veracity/groundedness prompts that check whether the response is faithful to the retrieved data.

Use cases: - Professional tone validation - Completeness checks (did the agent fully answer the question?) - Veracity/groundedness (is the response faithful to retrieved data?) - Brand voice consistency - Custom business rules

How it works: 1. Agent generates a response 2. Tool context is extracted from the conversation history 3. MLflow judge evaluates against your criteria (prompt-based) 4. If fails: Provides feedback and asks agent to try again 5. If passes: Response goes to user 6. After max retries: Falls back with a quality warning 7. If judge call fails: Configurable fail-open (default) or fail-closed

agents:
  customer_service_agent:
    model: *default_llm
    guardrails:
      # Professional tone check
      - name: professional_tone
        model: *judge_llm
        prompt: *professional_tone_prompt  # Reusable prompt reference
        num_retries: 3

      # Completeness validation
      - name: completeness_check
        model: *judge_llm
        prompt: |
          Does the response in {{ outputs }} fully address the question in {{ inputs }}?
          Rate as true if yes, false if no.
        num_retries: 2

      # Veracity/groundedness check
      # Tool context is automatically available in {{ inputs }}
      - name: veracity_check
        model: *judge_llm
        prompt: |
          Is the response in {{ outputs }} grounded in the retrieved context in {{ inputs }}?
          Rate as true if grounded, false if it fabricates information.
        num_retries: 2
        fail_on_error: false

Prompt template format: Guardrail prompts use Jinja2 template variables: - {{ inputs }} -- Contains the user query AND extracted tool context (search results, SQL results, etc.) - {{ outputs }} -- Contains the agent's response

Specialized guardrails (zero-config, no prompt needed):

These guardrails have built-in expert prompts and sensible defaults. Configure via the middleware: section:

middleware:
  # Veracity - grounded in tool/retrieval context (auto-skips when no tools used)
  veracity_check:
    name: dao_ai.middleware.create_veracity_guardrail_middleware
    args:
      model: "databricks:/databricks-claude-3-7-sonnet"

  # Relevance - ensures response addresses the actual query
  relevance_check:
    name: dao_ai.middleware.create_relevance_guardrail_middleware
    args:
      model: "databricks:/databricks-claude-3-7-sonnet"

  # Tone - validates against preset profiles (professional, casual, technical, empathetic, concise)
  tone_check:
    name: dao_ai.middleware.create_tone_guardrail_middleware
    args:
      model: "databricks:/databricks-claude-3-7-sonnet"
      tone: professional

  # Conciseness - hybrid length check + LLM verbosity evaluation
  conciseness_check:
    name: dao_ai.middleware.create_conciseness_guardrail_middleware
    args:
      model: "databricks:/databricks-claude-3-7-sonnet"
      max_length: 2000
      check_verbosity: true

Scorer-based guardrails (MLflow Scorers):

Any mlflow.genai.scorers.base.Scorer can be used as a guardrail, including built-in GuardrailsScorer validators for toxicity, PII, jailbreak detection, and more.

guardrails:
  # MLflow Scorer -- detects PII in responses
  pii_check: &pii_check
    name: pii_detection
    scorer: mlflow.genai.scorers.guardrails.DetectPII
    scorer_args:
      pii_entities: ["CREDIT_CARD", "SSN"]
    fail_on_error: true

  # MLflow Scorer -- detects toxic language
  toxic_check: &toxic_check
    name: toxic_language
    scorer: mlflow.genai.scorers.guardrails.ToxicLanguage
    scorer_args:
      threshold: 0.7

agents:
  my_agent:
    guardrails:
      - *pii_check
      - *toxic_check

Available built-in scorers: ToxicLanguage, NSFWText, DetectJailbreak, DetectPII, SecretsPresent, GibberishText.

Scorer-based guardrails can also be configured via the middleware factory pattern:

middleware:
  secrets_check:
    name: dao_ai.middleware.create_scorer_guardrail_middleware
    args:
      name: secrets_check
      scorer_name: mlflow.genai.scorers.guardrails.SecretsPresent

Additional guardrail types:

# Content Filter - Deterministic keyword blocking (no LLM needed)
# Uses compiled regex for efficient matching
middleware:
  content_filter:
    name: dao_ai.middleware.create_content_filter_middleware
    args:
      banned_keywords: [password, credit_card, ssn]
      block_message: "I cannot provide that information."

  # Safety Guardrail - MLflow judge-based safety evaluation
  # Uses structured output (safe/unsafe) for reliable classification
  safety_check:
    name: dao_ai.middleware.create_safety_guardrail_middleware
    args:
      safety_model: "databricks:/databricks-claude-3-7-sonnet"

Real-world example:
Your customer service agent must maintain a professional tone and never discuss competitor products:

agents:
  support_agent:
    guardrails:
      - name: professional_tone
        model: *judge_llm
        prompt: *professional_tone_prompt
        num_retries: 3

      - name: no_competitors
        type: content_filter
        blocked_keywords: [competitor_a, competitor_b, competitor_c]
        on_failure: fallback
        fallback_message: "I can only discuss our own products and services."

---

B. DSPy-Style Assertion Middleware (Programmatic Validation)

Assertion middleware provides programmatic, code-based validation inspired by DSPy's assertion mechanisms. Best for deterministic checks and custom logic.

Middleware	Behavior	Use Case
AssertMiddleware	Hard constraint - retries until satisfied or fails	Required output formats, mandatory citations, length constraints
SuggestMiddleware	Soft constraint - logs feedback, optional single retry	Style preferences, quality suggestions, optional improvements
RefineMiddleware	Iterative improvement - generates N attempts, selects best	Optimizing response quality, A/B testing variations

# Configure via middleware in agents
agents:
  research_agent:
    middleware:
      # Hard constraint: Must include citations
      - type: assert
        constraint: has_citations
        max_retries: 3
        on_failure: fallback
        fallback_message: "Unable to provide cited response."

      # Soft suggestion: Prefer concise responses
      - type: suggest
        constraint: length_under_500
        allow_one_retry: true

Programmatic usage:

from dao_ai.middleware.assertions import (
    create_assert_middleware,
    create_suggest_middleware,
    create_refine_middleware,
    LengthConstraint,
    KeywordConstraint,
)

# Hard constraint: response must be between 100-500 chars
assert_middleware = create_assert_middleware(
    constraint=LengthConstraint(min_length=100, max_length=500),
    max_retries=3,
    on_failure="fallback",
)

# Soft constraint: suggest professional tone
suggest_middlewares = create_suggest_middleware(
    constraint=lambda response, ctx: "professional" in response.lower(),
    allow_one_retry=True,
)

# Iterative refinement: generate 3 attempts, pick best
def quality_score(response: str, ctx: dict) -> float:
    # Score based on length, keywords, structure
    score = 0.0
    if 100 <= len(response) <= 500:
        score += 0.5
    if "please" in response.lower() or "thank you" in response.lower():
        score += 0.3
    if response.endswith(".") or response.endswith("!"):
        score += 0.2
    return score

refine_middlewares = create_refine_middleware(
    reward_fn=quality_score,
    threshold=0.8,
    max_iterations=3,
)

# Combine all middlewares into a single list
all_middlewares = assert_middlewares + suggest_middlewares + refine_middlewares

---

When to Use Which?

Use Case	Recommended Middleware
Tone/style validation	GuardrailMiddleware (LLM judge)
Safety checks	SafetyGuardrailMiddleware
Keyword blocking	ContentFilterMiddleware
Length constraints	AssertMiddleware (deterministic)
Citation requirements	AssertMiddleware or GuardrailMiddleware
Custom business logic	AssertMiddleware (programmable)
Quality optimization	RefineMiddleware (generates multiple attempts)
Soft suggestions	SuggestMiddleware

Best practice: Combine both approaches: - ContentFilter for fast, deterministic blocking - AssertMiddleware for programmatic constraints - GuardrailMiddleware for nuanced, LLM-based evaluation

agents:
  production_agent:
    middleware:
      # Layer 1: Fast keyword blocking
      - type: content_filter
        blocked_keywords: [password, ssn]

      # Layer 2: Deterministic length check
      - type: assert
        constraint: length_range
        min_length: 50
        max_length: 1000

      # Layer 3: LLM-based quality evaluation
      - type: guardrail
        name: professional_tone
        model: *judge_llm
        prompt: *professional_tone_prompt

11. Conversation Summarization

The problem: AI models have a maximum amount of text they can process (the "context window"). Long conversations eventually exceed this limit.

The solution: When conversations get too long, DAO automatically: 1. Summarizes the older parts of the conversation 2. Keeps recent messages as-is (for accuracy) 3. Continues the conversation with the condensed history

Example:
After 20 messages about product recommendations, the agent summarizes: "User is looking for power tools, prefers cordless, budget around $200." This summary replaces the old messages, freeing up space for the conversation to continue.

Automatically summarize long conversation histories to stay within context limits:

chat_history:
  max_tokens: 4096                    # Max tokens for summarized history
  max_tokens_before_summary: 8000     # Trigger summarization at this threshold
  max_messages_before_summary: 20     # Or trigger at this message count

The LoggingSummarizationMiddleware provides detailed observability:

INFO | Summarization: BEFORE 25 messages (~12500 tokens) → AFTER 3 messages (~2100 tokens) | Reduced by ~10400 tokens

12. Structured Output (Response Format)

What is this? A way to force your agent to return data in a specific JSON structure, making responses machine-readable and predictable.

Why it matters: - Data extraction: Extract structured information (product details, contact info) from text - API integration: Return data that other systems can consume directly - Form filling: Populate forms or databases automatically - Consistent parsing: No need to write brittle text parsing code

How it works: Define a schema (Pydantic model, dataclass, or JSON schema) and the agent will return data matching that structure.

agents:
  contact_extractor:
    name: contact_extractor
    model: *default_llm
    prompt: |
      Extract contact information from the user's message.
    response_format:
      response_schema: |
        {
          "type": "object",
          "properties": {
            "name": {"type": "string"},
            "email": {"type": "string"},
            "phone": {"type": ["string", "null"]}
          },
          "required": ["name", "email"]
        }
      use_tool: true  # Use function calling strategy (recommended for Databricks)

Real-world example:
User: "John Doe, john.doe@example.com, (555) 123-4567"
Agent returns:

{
  "name": "John Doe",
  "email": "john.doe@example.com",
  "phone": "(555) 123-4567"
}

Options: - response_schema: Can be a JSON schema string, Pydantic model type, or fully qualified class name - use_tool: true (function calling), false (native), or null (auto-detect)

See examples/09_structured_output/structured_output.yaml for a complete example.

---

13. Custom Input & Custom Output Support

What is this? A flexible system for passing custom configuration values to your agents and receiving enriched output with runtime state.

Why it matters: - Pass context to prompts: Any key in configurable becomes available as a template variable in your prompts - Personalize responses: Use user_id, store_num, or any custom field to tailor agent behavior - Track conversations: Maintain state across multiple interactions with thread_id/conversation_id - Capture runtime state: Output includes accumulated state like Genie conversation IDs, cache hits, and more - Debug production issues: Full context visibility for troubleshooting

Key concepts: - configurable: Custom key-value pairs passed to your agent (available in prompt templates) - thread_id / conversation_id: Identifies a specific conversation thread - user_id: Identifies who's asking questions - session: Runtime state that accumulates during the conversation (returned in output)

DAO uses a structured format for passing custom inputs and returning enriched outputs:

# Input format
custom_inputs = {
    "configurable": {
        "thread_id": "uuid-123",        # LangGraph thread ID
        "conversation_id": "uuid-123",  # Databricks-style (takes precedence)
        "user_id": "user@example.com",
        "store_num": "12345",
    },
    "session": {
        # Accumulated runtime state (optional in input)
    }
}

# Output format includes session state
custom_outputs = {
    "configurable": {
        "thread_id": "uuid-123",
        "conversation_id": "uuid-123",
        "user_id": "user@example.com",
    },
    "session": {
        "genie": {
            "spaces": {
                "space_abc": {
                    "conversation_id": "genie-conv-456",
                    "cache_hit": True,
                    "follow_up_questions": ["What about pricing?"]
                }
            }
        }
    },
    "trace_id": "tr-abc123def456...",  # MLflow trace_id for this turn
}

trace_id in custom_outputs:

Every dao-ai response exposes the outer MLflow trace_id for the user turn. In multi-agent flows (supervisor / swarm / handoffs), this is the single root trace whose children include every sub-agent invocation — feedback logged against this id attaches at the root, not at a sub-agent leg.

Use it to log thumbs-up/down without reading from MLflow global state:

from dao_ai.evaluation import log_user_feedback

resp = await agent.apredict(request)
log_user_feedback(
    trace_id=resp.custom_outputs["trace_id"],
    value="up",  # or "down", or bool
    comment="Multi-agent answer was correct.",
    user_id="user@example.com",
)

Never call mlflow.get_last_active_trace_id() or mlflow.get_current_active_span() in the caller — those race under concurrency or return None after the agent function returns.

Using configurable values in prompts:

Any key in the configurable dictionary becomes available as a template variable in your agent prompts:

agents:
  personalized_agent:
    prompt: |
      You are a helpful assistant for {user_id}.
      Store location: {store_num}

      Provide personalized recommendations based on the user's context.

When invoked with the custom_inputs above, the prompt automatically populates: - {user_id} → "user@example.com" - {store_num} → "12345"

Key features: - conversation_id and thread_id are interchangeable (conversation_id takes precedence) - If neither is provided, a UUID is auto-generated - user_id is normalized (dots replaced with underscores for memory namespaces) - All configurable keys are available as prompt template variables - session state is automatically maintained and returned in custom_outputs - Backward compatible with legacy flat custom_inputs format

14. Middleware (Input Validation, Logging, Monitoring)

What is middleware? Middleware are functions that wrap around agent execution to add cross-cutting concerns like validation, logging, authentication, and monitoring. They run before and after the agent processes requests.

Why this matters: - Input validation: Ensure required fields (store_num, tenant_id, API keys) are provided before processing - Request logging: Track all interactions for debugging and auditing - Performance monitoring: Identify slow agents and optimize bottlenecks - Rate limiting: Prevent abuse and control costs - Audit trails: Comprehensive logging for compliance and security - Error handling: Graceful failure management

Key concepts: - Middleware executes in order (validation → logging → expensive operations) - Each middleware can run pre-processing and post-processing logic - Middleware can modify requests, validate inputs, log events, and even stop execution - Defined once at the app level, reused across multiple agents

Input Validation Middleware

The most common middleware pattern is validating that required context fields are provided in custom inputs:

middleware:
  # Validate store number is provided
  store_validation: &store_validation
    name: dao_ai.middleware.create_custom_field_validation_middleware
    args:
      fields:
        # Required field - must be provided
        - name: store_num
          description: "Your store number for inventory lookups"
          example_value: "12345"

        # Optional field - shown in error message if missing
        - name: user_id
          description: "Your unique user identifier"
          required: false
          example_value: "user_abc123"

agents:
  store_agent:
    name: store_agent
    model: *default_llm
    middleware:
      - *store_validation    # Apply validation
    prompt: |
      ### Store Context
      - **Store Number**: {store_num}
      - **User ID**: {user_id}

      You are a helpful store assistant with access to store {store_num}'s data.

What happens when required fields are missing:

{
  "error": "Missing required field 'store_num'",
  "description": "Your store number for inventory lookups",
  "example": "12345",
  "help": "Please provide it in custom_inputs.configurable: {...}"
}

Logging Middleware

Track requests, performance, and create audit trails:

middleware:
  # Request logging
  request_logger: &request_logger
    name: dao_ai.middleware.create_logging_middleware
    args:
      log_level: INFO
      log_inputs: true
      log_outputs: false
      include_metadata: true
      message_prefix: "[REQUEST]"

  # Performance monitoring
  performance_monitor: &performance_monitor
    name: dao_ai.middleware.create_performance_middleware
    args:
      log_level: INFO
      threshold_ms: 1000         # Warn if execution > 1 second
      include_tool_timing: true

  # Audit trail
  audit_trail: &audit_trail
    name: dao_ai.middleware.create_audit_middleware
    args:
      log_level: INFO
      log_user_info: true
      log_tool_calls: true
      mask_sensitive_fields: true

agents:
  production_agent:
    middleware:
      - *request_logger
      - *performance_monitor
      - *audit_trail

Combined Middleware Stacks

For production environments, combine multiple middleware for comprehensive request processing:

agents:
  production_agent:
    middleware:
      - *input_validation      # 1. Validate required fields first (fail fast)
      - *request_logging       # 2. Log all requests early
      - *rate_limiting         # 3. Check rate limits before expensive ops
      - *performance_tracking  # 4. Monitor execution time
      - *audit_logging         # 5. Create comprehensive audit trail

Middleware execution flow:

Request Received
    ↓
[Validation] → Verify required fields
    ↓
[Logging] → Log request details
    ↓
[Rate Limiting] → Check quotas
    ↓
[Agent Execution] → Process request, call tools, generate response
    ↓
[Performance] → Log execution time
    ↓
[Audit] → Create audit record
    ↓
Response Returned

Common Middleware Patterns

Pattern	Use Case	Example
Store/Location Context	Multi-location businesses	Validate store_num for inventory queries
Multi-Tenant Validation	Enterprise SaaS	Validate tenant_id and workspace_id
API Key Validation	Third-party integrations	Validate external_api_key before API calls
Request Logging	Debugging and monitoring	Track all interactions with timestamps
Performance Tracking	Optimization	Identify slow agents and tools
Audit Trail	Compliance	Comprehensive logs with PII masking
Rate Limiting	Cost control	Limit requests per user/tenant

Creating Custom Middleware

You can create custom middleware by implementing a factory function:

from typing import Callable, Any
from langgraph.types import StateSnapshot
from langchain.agents import AgentMiddleware

def create_my_middleware(**kwargs) -> AgentMiddleware:
    """
    Factory function that creates middleware.

    Middleware factories return a single AgentMiddleware instance.
    """

    class MyMiddleware(AgentMiddleware):
        def __call__(
            self,
            state: StateSnapshot,
            next_fn: Callable,
            config: dict[str, Any]
        ) -> Any:
            # Pre-processing logic
            print(f"Before: {state}")

            # Call next middleware or agent
            result = next_fn(state, config)

            # Post-processing logic
            print(f"After: {result}")

            return result

    return [MyMiddleware()]

Then use it in your config:

middleware:
  custom: &custom
    name: my_package.middleware.create_my_middleware
    args:
      custom_arg: value

agents:
  my_agent:
    middleware:
      - *custom

Best Practices

1. Order matters: Validation → Logging → Expensive operations
2. Fail fast: Put validation first to reject bad requests early
3. Log everything: Capture context for debugging production issues
4. Environment-specific: Use minimal middleware for dev, full stack for production
5. Keep lightweight: Avoid blocking operations in middleware
6. Security first: Mask PII and sensitive data in logs

Example configurations: - See examples/12_middleware/ for complete examples - See examples/99_complete_applications/hardware_store/hardware_store.yaml for production usage

---

15. Hook System

What are hooks? Hooks let you run custom code at specific moments in your agent's lifecycle — like "before starting" or "when shutting down".

Common use cases: - Warm up caches on startup - Initialize database connections - Clean up resources on shutdown - Load configuration or credentials

Important: For per-request logic (logging requests, validating inputs, checking permissions), use middleware instead. Middleware provides much more flexibility and control over the agent execution flow.

Inject custom logic at key points in the agent lifecycle:

app:
  # Run on startup
  initialization_hooks:
    - my_package.hooks.setup_connections
    - my_package.hooks.warmup_caches

  # Run on shutdown
  shutdown_hooks:
    - my_package.hooks.cleanup_resources

agents:
  my_agent:
    # For per-request logic, use middleware instead
    middleware:
      - my_package.middleware.log_requests
      - my_package.middleware.check_permissions

---

16. Deep Agents (Task Planning, Filesystem, Subagents, Skills)

What is this? DAO AI integrates with the Deep Agents library to provide a suite of advanced agent capabilities through middleware factories. These give your agents the ability to plan tasks, read and write files, spawn subagents, discover skills, load memory context, and perform enhanced conversation summarization.

Why this matters: - Task planning: Agents can break complex requests into step-by-step todo lists, improving reliability on multi-step tasks - Filesystem access: Agents can create, read, edit, and search files -- essential for coding assistants, document processors, and data pipelines - Subagent spawning: A supervisor agent can delegate specialized work to isolated subagents, each with their own tools and context - Skill discovery: Agents progressively discover and use SKILL.md files, enabling modular capability expansion without prompt bloat - Memory context: Agents load persistent context from AGENTS.md files, carrying learned preferences across sessions - Enhanced summarization: Long conversations are summarized with full history offloaded to a backend, preventing context window overflow

All capabilities are configurable via YAML with no custom code required.

Available Middleware Factories

Factory	Module	Description
create_todo_list_middleware	dao_ai.middleware.todo	Adds a write_todos tool for structured task planning. Agents break complex work into pending/in_progress/completed steps.
create_filesystem_middleware	dao_ai.middleware.filesystem	Adds file operation tools: ls, read_file, write_file, edit_file, glob, grep. Auto-evicts large results to prevent context overflow.
create_subagent_middleware	dao_ai.middleware.subagent	Adds a task tool that spawns isolated subagents. Each subagent has its own context window and tool set.
create_skills_middleware	dao_ai.middleware.skills	Discovers SKILL.md files from configured source directories and injects a skill listing with progressive disclosure.
create_agents_memory_middleware	dao_ai.middleware.memory_agents	Loads context from AGENTS.md files at startup and injects it into the system prompt. Encourages the agent to update memory as it learns.
create_deep_summarization_middleware	dao_ai.middleware.summarization	Enhanced summarization that offloads full conversation history to a backend before summarizing, truncates large tool arguments, and supports fraction-based triggers.

Quick Start

Add middleware to any agent with YAML anchors:

middleware:
  # Task planning
  todo: &todo
    name: dao_ai.middleware.todo.create_todo_list_middleware

  # File operations
  filesystem: &filesystem
    name: dao_ai.middleware.filesystem.create_filesystem_middleware

  # Enhanced summarization
  summarization: &summarization
    name: dao_ai.middleware.summarization.create_deep_summarization_middleware
    args:
      model: "openai:gpt-4o-mini"
      trigger: ["tokens", 100000]
      keep: ["messages", 20]

agents:
  coding_agent:
    name: coding_agent
    model: *default_llm
    middleware:
      - *todo
      - *filesystem
      - *summarization
    prompt: |
      You are a coding assistant. Use write_todos for multi-step tasks.
      Use filesystem tools to read, create, and edit files.

Pluggable Backends

Middleware that use file storage accept a backend_type argument. This determines where files are stored:

Backend	Description	Required Args	Best For
state (default)	Ephemeral storage in LangGraph state	None	Development, testing, stateless agents
filesystem	Real disk storage	root_dir	Local development, sandbox environments
store	Persistent via LangGraph Store	None	Multi-turn persistence within a thread
volume	Databricks Unity Catalog Volume	volume_path	Production on Databricks, governed file access

middleware:
  # Ephemeral (default) -- files live in agent state only
  filesystem_ephemeral: &fs_ephemeral
    name: dao_ai.middleware.filesystem.create_filesystem_middleware
    args:
      backend_type: state

  # Real disk -- files persist on the filesystem
  filesystem_disk: &fs_disk
    name: dao_ai.middleware.filesystem.create_filesystem_middleware
    args:
      backend_type: filesystem
      root_dir: /workspace/agent_files

  # Databricks Volume -- files stored in Unity Catalog Volumes
  filesystem_volume: &fs_volume
    name: dao_ai.middleware.filesystem.create_filesystem_middleware
    args:
      backend_type: volume
      volume_path: /Volumes/my_catalog/my_schema/agent_workspace

Databricks Volume Backend

What is this? The DatabricksVolumeBackend lets agents read and write files in Databricks Unity Catalog Volumes. This is ideal for production deployments where file access needs to be governed by Unity Catalog permissions.

How it works: The backend maps the Deep Agents filesystem abstraction to the Databricks SDK WorkspaceClient.files API. Agent-visible paths are relative to the configured volume root -- when an agent writes to /data/report.txt, it is stored at /Volumes/catalog/schema/volume/data/report.txt.

Supported operations:

Operation	Tool	Description
List	ls	List files and directories in the volume
Read	read_file	Read file content with line numbers
Write	write_file	Create new files (create-only semantics prevents overwrites)
Edit	edit_file	Replace string occurrences in existing files
Search	grep	Search for text patterns across files
Find	glob	Find files matching glob patterns (e.g. *.py)

All operations have async variants for use in async agent pipelines.

Configuration:

schemas:
  agent_schema: &agent_schema
    catalog_name: production
    schema_name: agents

resources:
  models:
    default_llm: &default_llm
      name: databricks-claude-sonnet-4
      temperature: 0.1
      max_tokens: 4096

# Volume path can also reference a VolumePathModel from config
# resources:
#   volumes:
#     agent_volume: &agent_volume
#       schema: *agent_schema
#       name: workspace_files

middleware:
  # File operations backed by Databricks Volume
  filesystem: &filesystem
    name: dao_ai.middleware.filesystem.create_filesystem_middleware
    args:
      backend_type: volume
      volume_path: /Volumes/production/agents/workspace_files
      tool_token_limit_before_evict: 20000

  # Task planning
  todo: &todo
    name: dao_ai.middleware.todo.create_todo_list_middleware

  # Enhanced summarization -- also backed by Volume for history offloading
  summarization: &summarization
    name: dao_ai.middleware.summarization.create_deep_summarization_middleware
    args:
      model: "openai:gpt-4o-mini"
      backend_type: volume
      volume_path: /Volumes/production/agents/workspace_files
      trigger: ["tokens", 100000]
      keep: ["messages", 20]
      history_path_prefix: /conversation_history

agents:
  document_agent: &document_agent
    name: document_agent
    description: "Agent that reads and writes documents in Databricks Volumes"
    model: *default_llm
    middleware:
      - *todo
      - *filesystem
      - *summarization
    prompt: |
      You are a document processing agent with access to files stored
      in Databricks Unity Catalog Volumes.

      Use write_todos to plan multi-step document tasks.
      Use filesystem tools to read, create, edit, and search files.
      Files are stored in the /Volumes/production/agents/workspace_files volume.

app:
  name: volume_document_agent
  description: "Document agent with Databricks Volume file storage"
  agents:
    - *document_agent
  orchestration:
    memory:
      checkpointer:
        name: memory
        type: memory

Python usage:

from dao_ai.middleware import create_filesystem_middleware
from dao_ai.middleware.backends import DatabricksVolumeBackend

# Direct factory usage
middleware = create_filesystem_middleware(
    backend_type="volume",
    volume_path="/Volumes/production/agents/workspace_files",
)

# Or create the backend directly
backend = DatabricksVolumeBackend(
    volume_path="/Volumes/production/agents/workspace_files",
)
files = backend.ls_info("/")
content = backend.read("/data/report.txt")

Important notes: - The volume_path must start with /Volumes/ - Agent paths are relative to the volume root (/report.txt maps to /Volumes/.../report.txt) - write_file uses create-only semantics -- it will not overwrite existing files (use edit_file instead) - The backend creates parent directories automatically - Authentication uses the WorkspaceClient default (environment-based or explicit)

Subagent Configuration

Subagents are spawned as isolated agents with their own context. Configure them with name, description, system prompt, model, and tools.

The model field is flexible -- it accepts a "provider:model" string or an LLMModel dict that is automatically converted to a ChatDatabricks instance:

Format	Description
"openai:gpt-4o-mini"	String identifier -- passed to deepagents as-is
{name: ..., temperature: ...}	LLMModel dict -- converted to ChatDatabricks via LLMModel.as_chat_model()
LLMModel(...)	Python API -- converted via as_chat_model()
ChatDatabricks(...)	Python API -- passed through directly

middleware:
  subagent: &subagent
    name: dao_ai.middleware.subagent.create_subagent_middleware
    args:
      subagents:
        # String model -- uses provider:model format
        - name: researcher
          description: "Gathers information from various sources"
          system_prompt: |
            You are a research specialist. Find accurate, relevant
            information and provide well-organized summaries.
          model: "openai:gpt-4o-mini"
          tools: []
        # Dict model -- converted to ChatDatabricks automatically
        - name: writer
          description: "Creates well-structured documents and reports"
          system_prompt: |
            You are a technical writer. Create clear, well-organized
            documents based on the information provided.
          model:
            name: "databricks-gpt-5-4-mini"
            temperature: 0.1
            max_tokens: 4096
          tools: []

agents:
  supervisor:
    middleware:
      - *subagent
    prompt: |
      You are a supervisor. Use the task tool to delegate work:
      - "researcher" for information gathering
      - "writer" for document creation

Skills and Memory

Skills provide modular capability expansion. Place SKILL.md files in source directories and the agent discovers them automatically:

middleware:
  skills: &skills
    name: dao_ai.middleware.skills.create_skills_middleware
    args:
      sources:
        - skills/base           # Built-in skills
        - skills/project        # Project-specific skills

Each entry is a parent directory whose subdirectories each hold a SKILL.md. A relative source is resolved when the graph is built — against the config's directory, then $DAO_AI_PROJECT_ROOT, then the CWD, then sys.path — which is what lets one config work unchanged locally, on Apps, and in a serving container. An absolute source is used verbatim (correct for /Volumes/..., wrong for a path that only exists on your machine). Prefer declaring skills under resources.skills and referencing them; see Skills in the configuration reference.

Memory loads persistent context from AGENTS.md files:

middleware:
  memory: &memory
    name: dao_ai.middleware.memory_agents.create_agents_memory_middleware
    args:
      sources:
        - ~/.deepagents/AGENTS.md     # User-level preferences
        - ./.deepagents/AGENTS.md     # Project-level context

When to Use Which Middleware

Use Case	Recommended Middleware
Multi-step task execution	create_todo_list_middleware
Code generation / file editing	create_filesystem_middleware
Delegating specialized work	create_subagent_middleware
Modular capability expansion	create_skills_middleware
Persistent agent preferences	create_agents_memory_middleware
Long conversation management	create_deep_summarization_middleware
Production file storage on Databricks	create_filesystem_middleware with backend_type: volume

Example configurations: - See examples/12_middleware/deepagents_middleware.yaml for a complete example - See examples/12_middleware/README.md for all middleware examples

Deep Agent Orchestration (alternative to middleware)

The middleware factories above bolt deepagents capabilities onto existing dao-ai agents. For new applications you can also use the deep_agent orchestration mode, which wraps deepagents.create_deep_agent(...) directly and exposes every parameter declaratively:

app:
  orchestration:
    deep_agent:
      model: *default_llm                # LLMModel anchor or "provider:name" string
      tools: [*current_time]              # ToolModel anchors or string refs
      system_prompt: |
        You are a planner. Break complex tasks into todos before answering.
      skills: [*research_skill]           # local or volume-backed SkillModel
      instruction_files: [instructions/AGENTS.md] # AGENTS.md files spliced into the
                                          # prompt; relative to the config file
      subagents:
        - *product_specialist             # AgentModel anchor (full carry-over)
        - inventory_specialist            # name lookup in app.agents
        - name: math_helper               # inline SubAgentModel
          description: ...
          system_prompt: ...
      permissions:                        # FilesystemPermission rules
        - paths: ["/workspace/**"]
          mode: allow
          operations: [read, write]
      interrupt_on:                       # human-in-the-loop on selected tools
        write_file: true

When to use deep_agent orchestration vs. middleware: - Orchestration mode is better when the agent is a single planner with delegation — it produces one CompiledStateGraph that drops in wherever supervisor/swarm graphs are used today, and skills/memory ship cleanly with the model artifact via code_paths (local) or as Unity Catalog Volume resources (volume-backed). - Middleware mode is better when you're augmenting an existing dao-ai agent that already participates in a swarm or supervisor graph.

The two are mutually exclusive for a given graph — you don't need both at once. See examples/13_orchestration/deep_agent_*.yaml for working examples and the full pattern comparison.

---

17. Visualization (Vega-Lite)

Generate portable Vega-Lite chart specifications from structured data. The visualization tool is a factory tool that returns specs via tool output; the response pipeline automatically extracts them into custom_outputs.visualizations tagged with the current message_id.

How It Works

LLM calls visualization tool with data + chart params
    → tool returns Vega-Lite JSON spec
    → apredict / apredict_stream detects $schema in ToolMessage
    → spec placed in custom_outputs.visualizations[{spec, message_id}]
    → client renders with vega-embed, matching message_id

Configuration

tools:
  chart:
    name: chart
    function:
      type: factory
      name: dao_ai.tools.visualization.create_visualization_tool
      args:
        default_chart_type: bar   # bar | line | scatter | area | arc | heatmap
        width: container          # "container" for responsive, or int
        height: 400
        color_scheme: tableau10   # any Vega-Lite named scheme

Supported Chart Types

Type	Best For
bar	Categorical comparisons
line	Trends over time
scatter	Correlations between two measures
area	Volume over time
arc	Proportional breakdowns (pie)
heatmap	Density or matrix data

Client Integration

Each visualization in custom_outputs.visualizations has this shape:

{
  "spec": { "$schema": "...", "mark": "bar", ... },
  "message_id": "msg_abc12345"
}

The client matches message_id to the response output item id and renders the spec using vega-embed.

Example configuration: See examples/17_visualization/

---

18. Background Agents

What is this? Agent runs that exceed Databricks' synchronous-request limits — Model Serving kills worker threads at ~5 min, Databricks Apps' DPAPI proxy cuts HTTP connections at ~120 s. Long-running agents flip the contract: the client kicks off work with background: true, gets an immediate response with a resp_… id, and polls for completion. The agent runs on a persistent daemon thread so it survives request-loop teardown.

Why this matters: - Deep-research / multi-tool workflows routinely need 5–30 min - OpenAI Responses API–compatible on Apps — the stock openai Python client (client.responses.create(background=True) + client.responses.retrieve(id)) works unchanged - Same semantics on both targets — wire protocol differs only in URL shape (Apps has strict routes; Model Serving encodes op in custom_inputs) - Resilient to Lakebase token expiry — the underlying pool refreshes OAuth tokens per new connection + validates on checkout, so background tasks keep running past the 1 h token window

Architecture at a glance:

Configuration:

app:
  background:
    database: *lakebase_db           # Lakebase to persist response state
    default_enabled: false            # treat requests without explicit background flag as bg
    max_duration_seconds: 1800        # 30 min hard cap per task
    poll_interval_seconds: 1.0        # server-side poll cadence for streaming retrieve

Inference payload (kickoff, Apps):

curl -X POST "$APP_URL/v1/responses" \
  -H "Authorization: Bearer $DATABRICKS_TOKEN" \
  -d '{
    "input": [{"role":"user","content":"Research background agents."}],
    "background": true,
    "custom_inputs": {"configurable": {"thread_id": "demo"}}
  }'
# → {"id":"resp_…","status":"in_progress","output":[], ...}

Inference payload (poll, Model Serving):

curl -X POST "$DATABRICKS_HOST/serving-endpoints/$ENDPOINT/invocations" \
  -H "Authorization: Bearer $DATABRICKS_TOKEN" \
  -d '{
    "input": [],
    "custom_inputs": {"operation":"retrieve","response_id":"resp_…"}
  }'
# → {"id":"resp_…","status":"completed","output":[{"type":"message", ...}]}

See: Background Agents — full documentation for architecture diagrams, Lakebase schema, streaming retrieve + cursor resumption, cancel semantics, connection-pool OAuth refresh, and the end-to-end demo notebook.

Example configuration: See examples/18_background_agents/

---

19. Google A2A (Agent2Agent) Protocol Support

What is this? Every dao-ai agent deployed to Databricks Apps automatically exposes a fully A2A v0.3-compliant endpoint alongside the existing OpenAI Responses contract — same agent, same LangGraph, same checkpointer, two protocols on one FastAPI app.

Why this matters: - Ecosystem interop. Once your agent speaks A2A, any A2A-aware client (LangChain, AutoGen, Strands, OpenAI Agents SDK, custom Python clients) can discover and call it without bespoke glue. - Zero config to enable. A2A is on by default on every Apps deployment. Set app.a2a.enabled: false to opt out. - Same dao-ai capabilities, exposed on a different wire. HITL, OBO, conversation history (thread_id↔contextId), custom inputs (via DataPart), and long-running task persistence (via Lakebase-backed TaskStore) all flow through A2A unchanged. - No duplication. The HITL decision logic is shared between the Responses and A2A paths via a common helper (dao_ai.hitl.decide_graph_turn), so the two contracts cannot drift.

What you get on every Apps deployment: - GET /.well-known/agent-card.json — discovery card with skills, capabilities, and security schemes auto-derived from your config. - POST /a2a — JSON-RPC 2.0 implementing message/send, message/stream (SSE), tasks/get, tasks/list, tasks/cancel, tasks/subscribe.

Minimal config:

app:
  name: my_agent
  description: My agent's job
  agents: [*my_agent]
  # No app.a2a block required — A2A is on by default with sensible
  # defaults. To customise:
  # a2a:
  #   task_store: auto                # auto | in_memory | lakebase
  #   skills: [...]                   # override Agent Card skills
  #   security_schemes: {...}         # override Agent Card security

Documentation: - A2A Protocol Support — full reference covering the wire mappings, configuration surface, HITL/OBO semantics, task store selection, and scope of v0.3 compliance.

Example: examples/19_a2a_protocol/a2a_minimal.yaml is a deploy-ready, dependency-free A2A agent; examples/19_a2a_protocol/client/client.py is an end-to-end Python A2A client that exercises agent card, message/send, message/stream, and HITL resume.

⚠️ Apps-only. The Databricks Model Serving runtime can only route /invocations, so A2A is not available on Model Serving deployments. Model Serving keeps the OpenAI Responses contract unchanged.

---

Navigation

• ← Previous: Architecture
• ↑ Back to Documentation Index
• Next: Configuration Reference →
